Carbon Basso

Bacchetta Carbon Basso

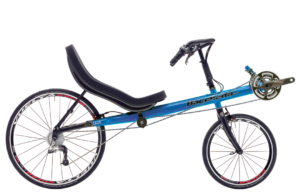

The Bacchetta Carbon Basso is a re-envisioning of our classic Ti Aero Basso. The Carbon Basso is ideal for both shorter riders and/or those looking for a lightweight performance bike with a less aggressive bottom bracket to seat ratio. The Carbon Basso frame is built from the same mold as the CA3.0 with a few frame geometry changes, retaining our Carbon Aero performance, rideability and superb finish heritage.


ModelCarbon Basso
Designed ByMark Colliton
FrameBacchetta Custom Carbon 3.0
ForkBacchetta Full Carbon 20″, w/disc, V-brake and road caliper options
SeatCarbon w/Bacchetta Seat Stay Clamps
HandlebarBacchetta Aero Tweener Bars (300mm reach)
StemBacchetta 3-Piece Adjustable
Rear DerailSRAM GX 11 spd.
Front DerailSRAM Rival YAW 11 spd.
ShiftersSRAM GX 2×11
CranksetFSA SLK-Light AGX+ 30/46t
Bottom BracketFSA
HeadsetFSA Orbit-X, 1-1/8″
Front BrakeTRP Spyke Disk Brake
Rear BrakeTRP Spyke Disk Brake
Brake LeversTektro Eclipse
Front WheelVuelta Corsa Lite Disc (Options of 451 or 406 Front Wheel Sizes)
Rear WheelVuelta Corsa Lite Disc, 700c
Front TireSchwalbe Durano 28c
Rear TireSchwalbe Durano 28c
ChainKMC X11
PedalsWellgo LU897 Platform
BB Height26″
Seat Height22″
WheelbaseStandard: 49″, Large: 50″
Weight22 lbs. Without Pedals
Weight Limit250 lbs. (Rider and Gear Make Up Total Weight Limit)
Gear Range25-126.5″
ColorPearl Blue
Frame SizeStandard: 12.5″ Boom, Large: 14″ boom
X SeamStandard: 37″-46″, Large: 41″-50″
Prices are subject to change and do not include shipping and handling or sales tax. All specifications are subject to change without notice.
