Available as a Bosch equipped eCAT
$4350

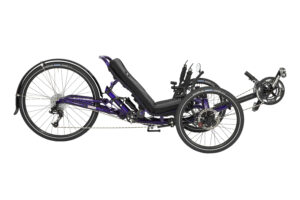

Catrike’s 16 years of engineering and experience have come together to create the Dumont. The rear suspension features a highly progressive travel path combined with a custom spring rate and sophisticated damping for a perfect balance of performance and comfort. The shock is actuated via a CNC machined swingarm pivoting on precision cartridge bearings to allow the suspension system to operate with seamless efficiency. Up front, the Dumont employs Catrike’s patented anti-dive front suspension spindles to take the edge off while allowing all wheels to move independently. The result is that the Dumont stays firmly planted on the ground with the active suspension. The long and low rider position and fully adjustable boom provide stable weight distribution needed for maximum performance while the ergonomic backrest is fully adjustable for the perfect fit. A 26-inch rear wheel and folding feature, round out the Dumont to provide the ultimate ride.
Features
- Padded seat
- Ergonomic adjustable seat back
- Roller wheels for rolling when folded
- Padded wrist rests
- Rear Fender
- Flag Mount & Flag
- Mirrycle Rear View Mirror
- Multi Purpose Clipless Pedals
- Computer Sensor Mount
- No Brake Steer
- Self Centering
- Ackermann Steering Compensation
- Structural Front Boom
- Quick-Release Indexing Boom Clamp
- Aluminum Rod Ends
- Low Friction PTFE Flared Chain Tube
- 12×142 Thru Axle
Components
| Brakes | Avid BB7 Disc Brakes |
| Brake Levers | Catrike Locking Brake Levers |
| Front Derailleur | Microshift Triple |
| Rear Derailleur | SRAM GX 10 Speed |
| Shifters | SRAM 500 TT Bar End Shifter |
| Crankset | FSA Gossamer Pro Triple |
| Bottom Bracket | FSA Road MegaExo |
| Chainrings | 30/39/52 |
| Chain Guard | FSA Guard |
| Cassette | SRAM 11/36 10 Speed |
| Chain | KMC |
| Idler | TerraCycle Sport Power Idler 15T |
| Headsets | FSA Zero Stack |
| Front Tires | 406 Schwalbe Marathon Racer |
| Rear Tire | 559 Schwalbe Marathon Racer |
Frame and Geometry
| US | metric | |
| Folded Length | 45.25 in | 1149 mm |
| Folded Width | 32.5 in | 825 mm |
| Folded Height | 25 in | 635 mm |
| Total Length** | 82 in | 2083 mm |
| Total Width | 32.5 in | 826 mm |
| Total Height | 28 in | 711 mm |
| Wheel Base | 45.5 in | 1156 mm |
| Wheel Track | 29.5 in | 749 mm |
| Seat Angle | 42-49 deg | |
| Weight* | 43 lb | 19.5 kg |
| Seat Height | 10 in | 254 mm |
| Seat Width | 14 in | 356 mm |
| BB Height** | 16.5 in | 419 mm |
| Ground Clearance | 4 in | 102 mm |
| Height w/ Seat Folded | 26.5 in | 673 mm |
| Turning Circle | 18 ft | 5.49 m |
| Turning Radius | 9 ft | 2.74 m |
| Rider Weight Limit | 275 lbs | 125 kg |
| Rider X-Seam Range | 39-46 in | 99-117 cm |
| Front Suspension Travel | 0.5 in | 12.7 mm |
| Rear Suspension Travel | 2 in | 50 mm |
**varies accordingly to rider height.
