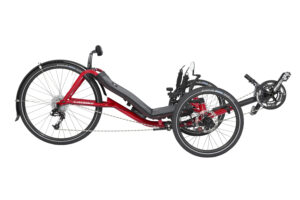

Catrike Expedition


The sense of freedom that comes with taking the path less traveled can be yours with just a pedal stroke. Exploring hidden roads and seeing nature sliding past in near silence is an experience only rolling through the country on a Catrike can provide. The Expedition offers a beautiful and sleek machine combined with a long, comfortable body position for all-day riding. To be prepared for any adventure, the Expedition comes equipped with a space frame for heavy packs. The 26-inch rear wheel provides a broad range of gears for a variety of terrain. There are so many roads to explore that you may never see them all, but it won’t be for lack of trying.

Available as a Bosch equipped eCAT


  • Neck rest
  • Spaceframe
  • Rear Fender
  • Flag Mount & Flag
  • Mirrycle Rear View Mirror
  • Multi Purpose Clipless Pedals
  • Computer Sensor Mount
  • No Brake Steer
  • Self Centering
  • Ackermann Steering Compensation
  • Structural Front Boom
  • Quick-Release Indexing Boom Clamp
  • Aluminum Rod Ends
  • Low Friction PTFE Flared Chain Tube
  • 12×142 Thru Axle


BrakesAvid BB7 Disc Brakes
Brake LeversCatrike Locking Brake Levers
Front DerailleurMicroshift Triple
Rear DerailleurSRAM GX 10 Speed
Shifters SRAM 500 TT Bar End Shifter
CranksetFSA Gossamer Pro Triple
Bottom BracketFSA Road MegaExo
Chain GuardSRAM 11/36 10 Speed
Chain KMC
IdlerTerraCycle Sport Power Idler 15T
HeadsetsFSA Zero Stack
Front Tires406 Schwalbe Marathon Racer
Rear Tire559 Schwalbe Marathon Racer
*All components are subject to change with an equivalent substitute based on availability

Frame and Geometry

Wheel Base43 in1092 mm
Wheel Track29 in737 mm
Total Width32.5 in826 mm
Total Length**77 in1956 mm
Seat Angle37 deg
Weight35 lb15.9 kg
Seat Height10 in254 mm
Seat Width14 in356 mm
BB Height**16.5 in419 mm
Ground Clearance4.5 in114 mm
Total Height26 in660 mm
Turning Circle18 ft5.4 m
Turning Radius9 ft2.7 m
Rider Weight Limit275 lb125 kg
Rider X-Seam Range39/46 in99/117 cm
* weight includes pedals, mirror, flag, computer mount and neck rest if standard on the model.
**varies according to riders height.
