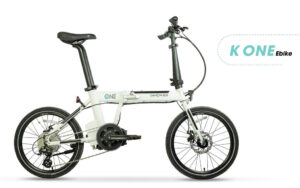

K-One E-Bike Mid Drive

Dahon K-One E-Bike Mid Drive


The Dahon K-One PLUS brings power and efficiency in an affordable and compact package.

The K-One Plus provides truly zippy power with a lightweight, compact mid-drive. Great acceleration and hill-climbing in a lightweight package provides a truly unique ride that will keep you grinning throughout your ride.

As a leader among folding bike manufacturers for over 30 years, Dahon has had the resources and expertise to make the K-One PLUS perhaps impossible to beat when combining low-weight, quality construction, low weight and price. It’s lighter than just about any folding e-bike, weighing only 42lbs. The mid-drive motor from Tong Sheng is smooth, efficient, and well-powered.The frame construction is built solid, like all Dahon folding bikes, The torque-sensor delivers a smooth, natural ride


Model NumberFEA083CM
MotorCentral Motor, 36V 250 W, built-in controller
Battery36V 8.7AH Samsung battery chipset
FrameFEA20 aluminum foldable
Fork20″ Iron
Handle StemDahon square aluminum foldable
DisplayTS LCD Display, 4 degree, battery volume, speed display
Front Light6V, 2W, 15LUX
Charger42V2A, DC2.1
ShifterRight 8-Speed Shimano
HandlebarG03 136mm L + R Black/Gray bi-pass
Rear DerailleurAltus M310
FreewheelSunrace CSM56 11-32T
ChainZ8 1/2″ x 3/32″ 110L
Brake Cable5mm CGX (SIS)
BrakeDB-285 F/R
Chain Wheel32T
PedalF278DU 9/16″ CPSC L/R
SeatpostSP-AL-004 33.9mm x 580mm
Seatpost Clamp40.8mm 6061 Aluminum
Front HubDH-802F M9 x 14G x 32H x 100 x 108mm
Rear HubDH-802R M10 x 14G x 32H x 135 x 145mm
Front RimXCD16 20″ 406mm x 14G x 32H
Rear RimXCD16 20″ 406mm x 14G x 32H
Tire20″ x 1.75″ K924
