Magnum XL

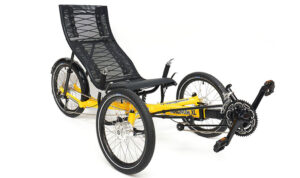

Greenspeed Magnum XL


Carrying over the same great features of the Magnum, the XL offers a bigger frame for riders in need of a larger platform. The XL is ideal for on and off-road riding, and can accommodate riders up to 450lbs.


Frame Material7005 Aluminium Alloy
Seat Recline°30-48°
Wheelbase Length45”
Box Dimensions39”x31”x20”
Total Weight44 lbs
Component Levels Available27 Spd Shimano
Steering SystemGS Crossover
Boom TypeAdjustable
Overall Length (Max)84”
Crankset Height16”
Combine Load Limit450 lbs
Seat TypeHeight Adjustable Aluminum
X-Seam Range44-54”
Track Width33.5”
Seat Height6.5”
Turning Dimensions**14’
Component Levels Available27 Spd Shimano
All Dimensions are in inches/feet. All Specifications and Components are subject to change without notice.
* Seat fore/aft adjustment may limit recline range.
** Turning dimensions are from the centerline of the trike. NOTE: The fore/aft setup of the seat may change the turning dimensions slightly.
