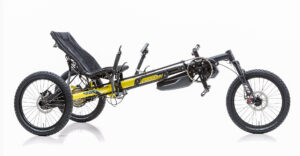

The KETTWIESEL CROSS STEPS: the delta trike for up and down and whoopee!
The recumbent all-terrain trike, the off-road delta, or the daredevil of the HASE BIKES family – this is the CROSS. The KETTWIESEL CROSS.
The recumbent trike with a license for off-road
The yellow bullet with the knobby treads sails serenely over roots and rocks, carves up the tightest corners, and keeps the squirrels watching safely from the trees. Be it off-road thrills in the forest or insane challenges at the bike park, one thing is clear: the fun-seeking CROSS has a nose for the road less traveled!
Also typical KETTWIESEL: for riders with special needs and/or off-road genes, there are all kinds of special pedals and accessories! As a delta trike, the CROSS is also perfect for turning on a dime, parking upright, and hitching up for tandem fun.
Downhill with special derailleur and suspension
Bombing downhill, leaning into corners, testing your limits: this what the off-roader lives for, and good equipment is everything. The CROSS has an extremely sporty chassis and keeps its cool on the gnarliest stretches – thanks to the independent wheel suspension with sway bar and special air shocks.
Bottoming on jump landings? Ouch. This is why we custom-developed our own HASE BIKES linear derailleur for the CROSS. It has more ground clearance than standard derailleur cages. The 11-speed system made from CNC-machined aluminum is sophisticated, but not finicky. It’s also very forgiving of shifting mistakes. Sound good? It’s out of this world!
Uphill with differential and top traction
Surrender to that steep, pebbly slope? Not this trike! Every CROSS comes with a differential, which transmits power to both rear wheels. The tires almost never lose traction because, with a delta, the rider’s weight is over the rear axle.
Riders who can’t or would rather not rely on pure muscle power can switch on the Shimano Steps mid-motor any time they need a little energy boost. The smooth and quiet system is seamlessly integrated into the bottom bracket and helps you rocket up the ascents.
Easy transport with foldable frame
Sure, you can ride your CROSS over asphalt. But if that’s not exciting enough, the station wagon will also take you and your CROSS from challenge to challenge. Thanks to the ingenious folding mechanism, three quick steps is all it takes to transform the trike into a compact unit measuring a maximum of 38 inches (96 cm) that fits easily into the trunk. Awesome, isn’t it?
- Very agile, smooth-riding
- Excellent safety and stability thanks to low center of gravity
- Full suspension
- Usable in tandem and as a trailer
- Hase Bikes Differential
|Total length||69″-87″ (176-221 cm), without front wheel 60″ (153 cm)|
|Total width||35½” (90 cm)|
|Total height||32″ (82 cm), with seat folded down: 21″ (53 cm)|
|Turning circle||Left 10’10” (3.30 m), right 11’6″ (3.50 m) at mean length adjustment|
|Seat height||20″ (50 cm)|
|Bottom bracket height||20½” (52 cm)|
|Size when folded (LxWxH)||38″×35½”×19″ (96×90×49 cm)|
|Wheelbase||52″-70″ (132-178 cm)|
|Fork||Suspension fork Spinner Grind 1|
|Front boom||6061-T6 aluminum|
|Max. load||308 lb (140 kg)|
|Suspension||HASE BIKES EVO independent wheel suspension with sway bar and HASE BIKES air shocks|
|Folding mechanism||HASE BIKES Folding Joint|
|Brakes||Rear: Tektro Auriga Twin hydraulic disc brakes with integrated parking brake, Front: Avid BB7 mechanical disc brake with parking brake lever|
|Wheels||20″, Hubs: HASE BIKES (rear), Rims: double wall with eyelets, Spokes: Sapim, Tires: Schwalbe Mad Mike 57×406|
|Gears||HASE BIKES LINEAR 11-speed, 11-42 tooth, Microshift bar-end shifter|
|Crankset||Truvativ Touro 52 tooth|
|Drive system||HASE BIKES Differential|
|Weight||51.8 lb (23.5 kg)|
|Color||RAL 1018 Zinc Yellow/powder-coated, front boom black anodized with length-adjustment markings|
