AM 22

Moulton AM 22

Call For Pricing

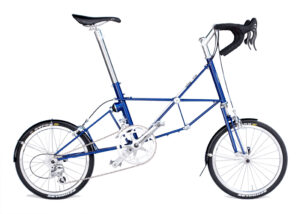

The smooth riding Moulton AM 22 with smaller pack size and reduced weight. The NiCrMo Space-frame features a shorter seat tube (and extended Moulton 953 seat post) and the original 17″ wheels allow luggage to be carried low on platform carriers for enhanced stability – ideal for road touring and day rides.

Features

Wheel Size17″
Frame‘Shot-in’ tube construction in Kasei NiCroMo steel. Fillet brazed by hand.
Front SuspensionMoulton Leading Link
Rear SuspensionMoulton Monosphere
SeparabilitySeparates into two halves via removal of a kingpin
Frame FinishPainted, with optional polished highlights
Front CarrierFits optional ‘Platform’ or ‘Pannier’ carrier
Rear CarrierFits optional ‘Large Rear’ or ‘Day’ carrier
ColourNew Blue or Steely Grey

Specifications

Gears22
SpecCampagnolo Centaur 11
Gear TypeDerailleur
HandlebarDrop: Deda Speciale classic drop (44 or 42)
Handlebar StemAL ahead stem (90, 110 or 135mm)
Handlebar TapeBrooks Cambium rubber
HeadsetMoulton custom lightweight 1″ sealed
SeatpostMoulton 953, layback head
Saddlefi’zi:k Aliante
Brake LeversCampagnolo Centaur Silver
Gear LeversCampagnolo Centaur Silver
BrakesTektro R539 DP 57 calliper
Front MechCampagnolo Centaur Silver
Rear MechCampagnolo Centaur Silver
CranksetCampagnolo Centaur Ultra-Torque Silver
Bottom BracketCampagnolo Ultra-Torque
Cassette/SprocketMoulton 9-32
ChainConnex 11sX
PedalsMKS Promenade q/r
Front HubMoulton custom forged 28h silver
Rear HubMoulton custom forged 28h silver
SpokesSapim Laser/Force butted (differential)
RimsMoulton M17, Silver, CNC brake track
TyresSchwalbe Kojak (Kevlar) 32-369
MudguardsSupplied
Mudguard ClearanceUp to 32mm tyre section
Gear Range (inches) T= Touring, S= SportT = 19-9″ (52/36): standard
S = 23-109″ (58/44): extra cost
OptionsWishbone stem (ahead type)
