Call for Pricing

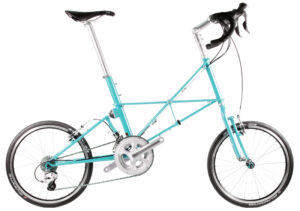

A superb entry-level Moulton. Ideal for the leisure cyclist and those who often leave the tarmac behind, the TSR is a true ‘go anywhere bicycle’. An all round performer, travel in true Moulton comfort on a variety of terrains.
Features
| Wheel Size | 20″ |
| Frame | Columbus Spirit and Reynolds 525 CrMo steels. Hairpin construction. Fillet brazed by hand |
| Front Suspension | Moulton Leading Link |
| Rear Suspension | Moulton Monosphere |
| Separability | Separates into two halves via removal of a centre ‘kingpin’ |
| Frame Finish | Powder coat |
| Front Carrier | Fits optional ‘Pannier’ Carrier |
| Rear Carrier | Fits optional ‘Luggage’ or ‘Day Carrier’ |
| Colours (for all but TSR 2*) | Black, Duck Egg Blue, Burgundy, or Forest Green |
| *Colour for TSR 2 Only | Britannia Red |
Specifications
| Gears | 22 | 8 | 9 | 2 |
| Spec | Shimano 105 | Shimano Alfine | SRAM X-gen | Sturmey S2C |
| Gear Type | Derailleur | Hub | Derailleur | Hub |
| Handlebar | Drop: GB Carter Bar | Flat: M special flat bar | Flat: Kalloy AL-007 DB | Flat: Kalloy AL-007 DB |
| Handlebar Stem | Raised adjustable alloy 31.8 | Uno adjustable | Uno adjustable | Uno adjustable |
| Handlebar Tape | Deda traforato tape (black) | Rubber moulded grips | Rubber moulded grips | Clamp-on grips |
| Headset | Tange Seiki threadless 1″,sealed | Tange Seiki threadless 1″,sealed | Tange Seiki threadless 1″,sealed | Tange Seiki threadless 1″,sealed |
| Seatpost | 31.6 Moulton custom alloy (two bolt) | 31.6 micro-adjust | 31.6 micro-adjust | 31.6 micro-adjust |
| Saddle | fi’zi:k Aliante | Selle Royal Viper | Selle Royal Viper | Selle Royal Viper |
| Brake Levers | Shimano 105 STI | Tektro ML520 | Tektro ML520 | Avid FR-5 |
| Gear Levers | Shimano 105 STI | Shimano Alfine trigger shifter | SRAM DD9 Trigger (Rear) | N/A (back-pedal shift) |
| Brakes | TRP RX6 V | Tektro M710 | Tektro M710 | Tektro V/back-pedal rear |
| Front Mech | Shimano 105 | N/A | N/A | N/A |
| Rear Mech | Shimano 105 | N/A | SRAM X7 short cage | N/A |
| Crankset | Shimano 105 53/39 | Sturmey Archer 54t (two guards) | Sturmey Archer 54t (two guards) | Sturmey Archer 44t |
| Bottom Bracket | Shimano Hollowtech II | Sealed cartridge | Sealed cartridge | Sealed cartridge |
| Cassette/Sprocket | Moulton custom 10-32t 11s | 18t 3/32″ | SRAM PG950 11-32 | SA 15t 3/32″ |
| Chain | Wippermann Connex | Sunrace 3/32″ | Wippermann Connex | Sunrace 3/32″ |
| Pedals | None supplied | VP607 alloy/rubber tread VP607 | VP607 alloy/rubber tread VP607 | VP607 alloy/rubber tread VP607 |
| Front hub | Moulton custom alloy forged 28 | KT 28h alloy | VP 28h polished alloy | KT 28h alloy |
| Rear hub | Moulton custom alloy forged 28 | Shimano Alfine 8 32h silver | VP 28h polished alloy | Sturmey Archer S2C |
| Spokes | Sapim LASER SS DB (FORCE TB DS rear) | SS 14g | SS 14g | SS 14g |
| Rims | Double wall alloy semi-aero Black/CNC | Double wall alloy semi-aero Black/CNC | Double wall alloy semi-aero Black/CNC | Double wall alloy semi-aero Black/CNC |
| Tyres | Schwalbe Durano 28-406 | Schwalbe Marathon Racer 40-406 | Schwalbe Marathon Racer 40-406 | Schwalbe Marathon Racer 40-406 |
| Mudguards | Available as accessory | Available as accessory | Available as accessory | Available as accessory |
| Mudguard Clearance | Up to 35mm tyre section | Up to 1.6″ tyre section | Up to 1.6″ tyre section | Up to 1.6″ tyre section |
| Gear Range (inches) | 22.5-98″ | 30-96″ | 32-94″ | 55-75″ |
| Options | Flat handlebar | … | … | … |
