$2499

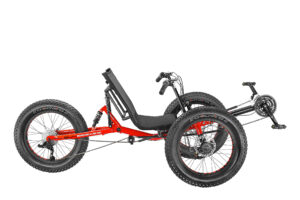

The Fat Tad CX is the most fun you’ll have this low to the ground off road. This bad boy is equipped with front and rear suspension, chromoly frame and 4 inch wide off road tires! The Fat Tad will handle sand and gravel like no other trike out there. Other features include aluminum seat frame, padded seat and provisions to mount 4 water bottle cages.
FAT TAD SPECIFICATIONS
| WHEEL BASE | 59″ (150cm) |
| OVERALL LENGTH | 78″ – 83 1/2″ (198-212cm) |
| WIDTH | 36 1/4″ (92cm) |
| SEAT HEIGHT | 16 1/2″ – 17 3/4″ (42-45cm) |
| B.B. HEIGHT | 20″ – 21 1/2″ (51-55cm) |
| GROUND CLEARANCE | 10″ (25cm) |
| FRAME | Tig Welded Chromoly with Rear Coil Over Suspension |
| FORK | High Tensile Steel with Integrated Suspension |
| BB | Sealed Cartridge |
| CRANK | Triple Alloy 170mm 42/32/22T |
| F. DERAILLEUR | Sunrace |
| R. DERAILLEUR | Sram |
| SHIFTER | Sram |
| FREEWHEEL | 11-34 8 Speed |
| PEDALS | Platform |
| BRAKE FRONT | Promax Mechanical Disk |
| BRAKE REAR | N/A |
| BRAKE LEVERS | Promax Alloy w/Lock |
| HEADSET | Sealed Mechanism Steel |
| HANDLEBAR | Chromoly w/ Bottle Braze-ons |
| STEM | N/A |
| HUB FRONT | Alloy Tadpole |
| HUB REAR | Alloy 190mm Fat Bike Q/R |
| RIM FRONT | 20x54mm 36h Fat Bike Alloy |
| RIM REAR | 20x54mm 36h Fat Bike Alloy |
| SPOKES | 14g. Stainless Steel |
| TIRE FRONT | 20×4.0 Fat Bike Knobby |
| TIRE REAR | 20×4.0 Fat Bike Knobby |
| SADDLE | Alloy Frame 1pc – Padded/Mesh w/ Bottle Braze-ons |
| SEAT SLIDE | Rans Style |
| WEIGHT | 57lbs |
| WEIGHT LIMIT | 300lbs. |
| X-SEAM | 37″ – 50 1/2″ (94-128cm) |
| COLORS | Gloss Black/Bright Red |
